Nide is specialized in carbon brush produce. Nide possess a complete set of advanced and special equipment for carbon brush production and inspection to guarantee our quality. Nide team will provide customers with advanced technology, first class quality and best service, will be always at your service.
Technical requirement
|
Material |
Model |
resistance |
Bulk density |
Rated current density |
Rockwell hardness |
loading |
|
Natural graphite |
S3 |
11±30% |
1.66±10% |
11 |
77(-60%~+22%) |
60KG |
|
G4 |
15±30% |
1.73±10% |
11 |
83(-60%~+22%) |
60KG |
|
|
Advantage: running stable, temperature rising slow |
||||||
|

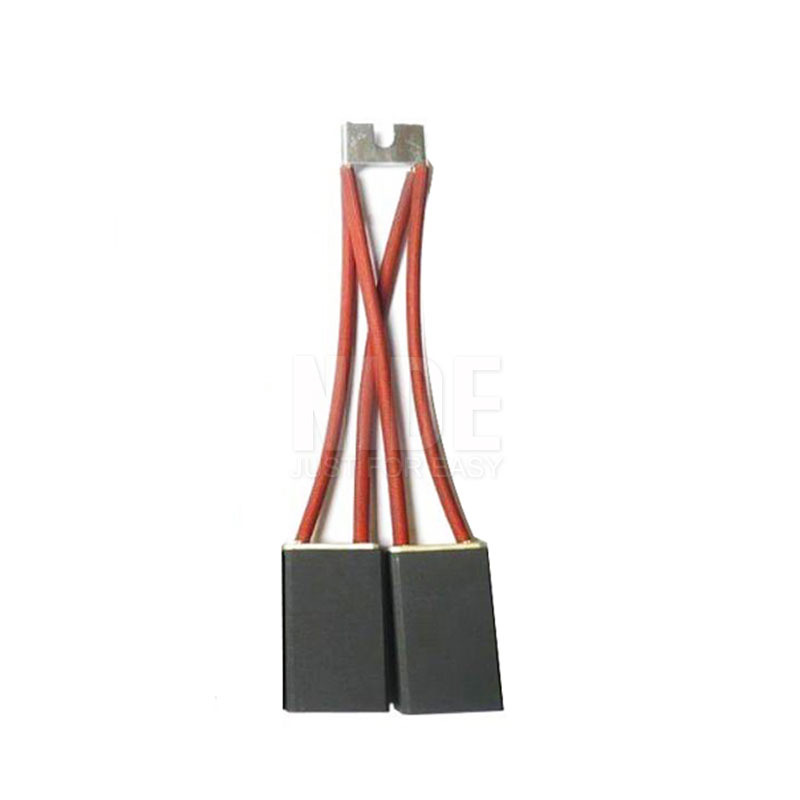

Application: suitable for 80-120V DC motor |
||||||
Carbon brush features
1) Good quality
2) small spark
3) low noise
4) long duration
5) good lubrication performance
6) good electric conductivity
Information needed for carbon brush inquiry:
It will be better if customer could send us detailed drawing including below information.
1. Carbon brush dimension: length, width, height, lead wire length
2. Carbon brush material:
3. Carbon brush voltage and current requirement.
4. Carbon brush applications
5. Required quantity
6. Other technical requirement.
If possible, it will better if customer could send us samples.
NIDE can supply the full range of electric motor components such as commutator, ball bearing, thermal protector, carbon brush, insulation paper, shaft, magnet, fan, motor cover,etc.
With good service, unique philosophy, professional team and reliable quality, we win the worldwide customers' confidence gradually. We directly and indirectly supply our products to more than 50 countries.Among the customers, many of them are the world-renown companies.
| Customerized service | 1. Customized product design and manufacturing |
| 2. Customized tranning | |
| 3.Technical suggestions | |
| After-sales service | 1. Warranty Period: 12 month usually |
| 2. Overseas service center available | |
| 3. Engineers available to service overseas |
Established in 2007, Nide is a company devoted in the field of electric motors manufacturing, providing one-stop service for its customers.
Nide has three main business divisions.
The first division is to provide different kinds of motor manufacturing machinery, it is our Main business, including stand along machine, fully-auto complete line for armature and stator production, and the motor assembly line.
The second division is to supply the full range of motor components such as commutator, ball bearing, carbon brush, insulation paper, shaft, magnet, fan, motor cover,etc.
The third division is to provide technical support and consulting, project support and turn-key service for some motor manufacturing.
Our machines are mainly applied to induction motors, BLDC motor, universal motor, three phase motor, single phase motor, AC motor, DC motor, such as washing machine motor, air conditioner motor, pump motor, cooler motor, alternator motor, fan motor, ceiling fan motor, compressor motor, power tool motor, vacuum cleaner motor, mixer motor, series motor, electrical car motor, wheel hub motor, electric toothbrush motor, hair dryer motor, electric shaver motor,etc.
